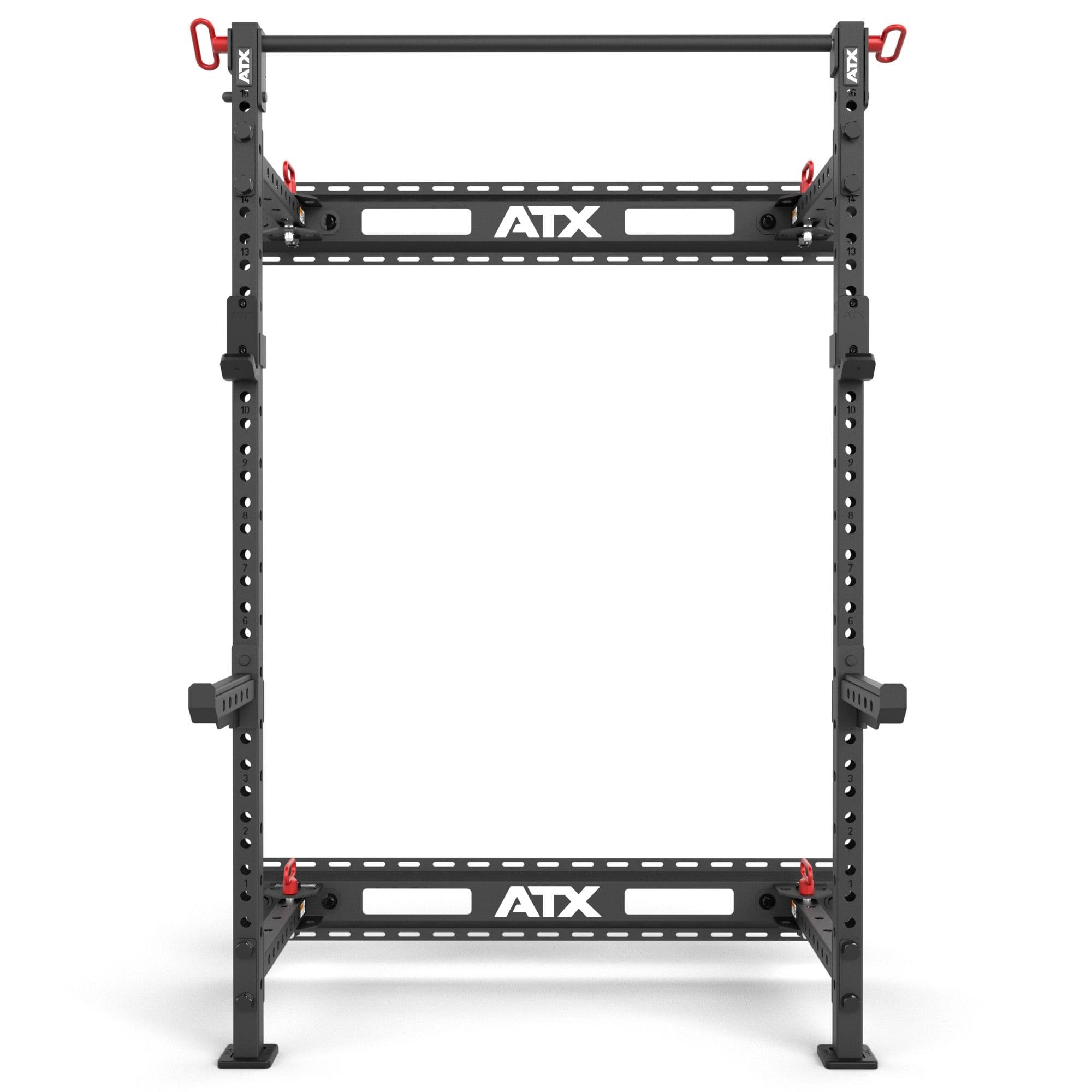

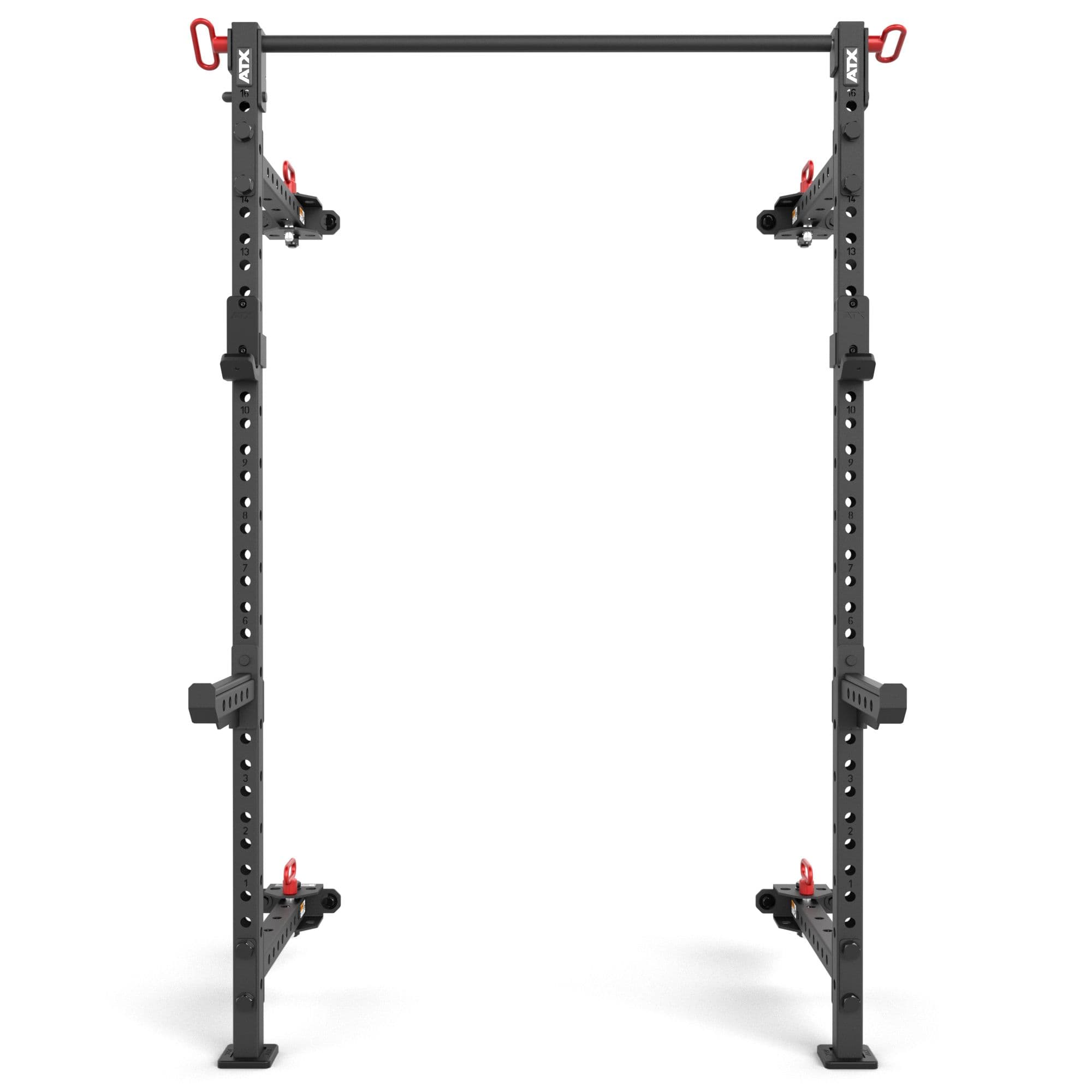

ATX Fold Back Rack FBR-500
Flexible rack solution from the 500 series. Extra low overall height of 198 cm. Ideal for rooms with low ceiling.
525.00€Buy on trenazieri.lvAbout the product

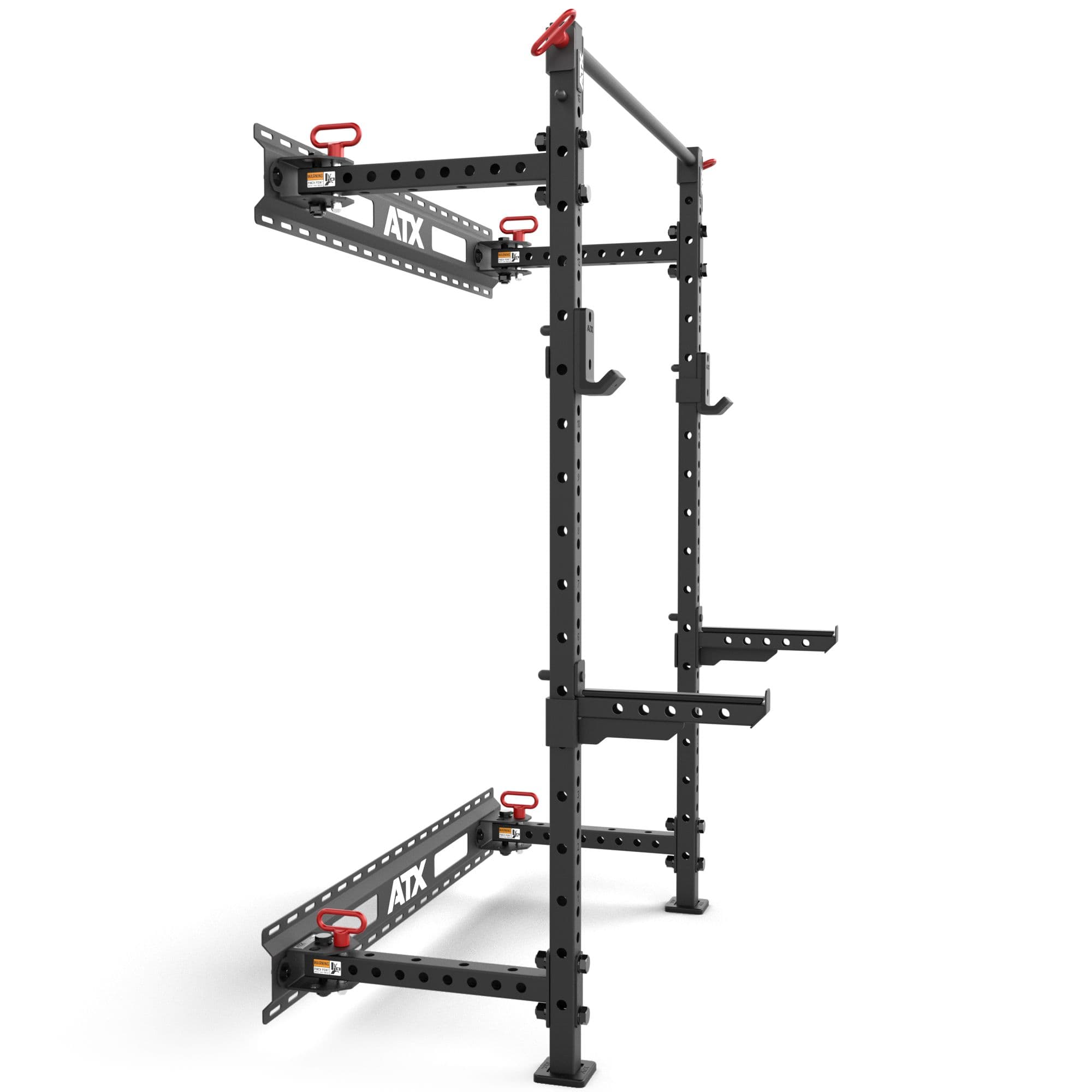

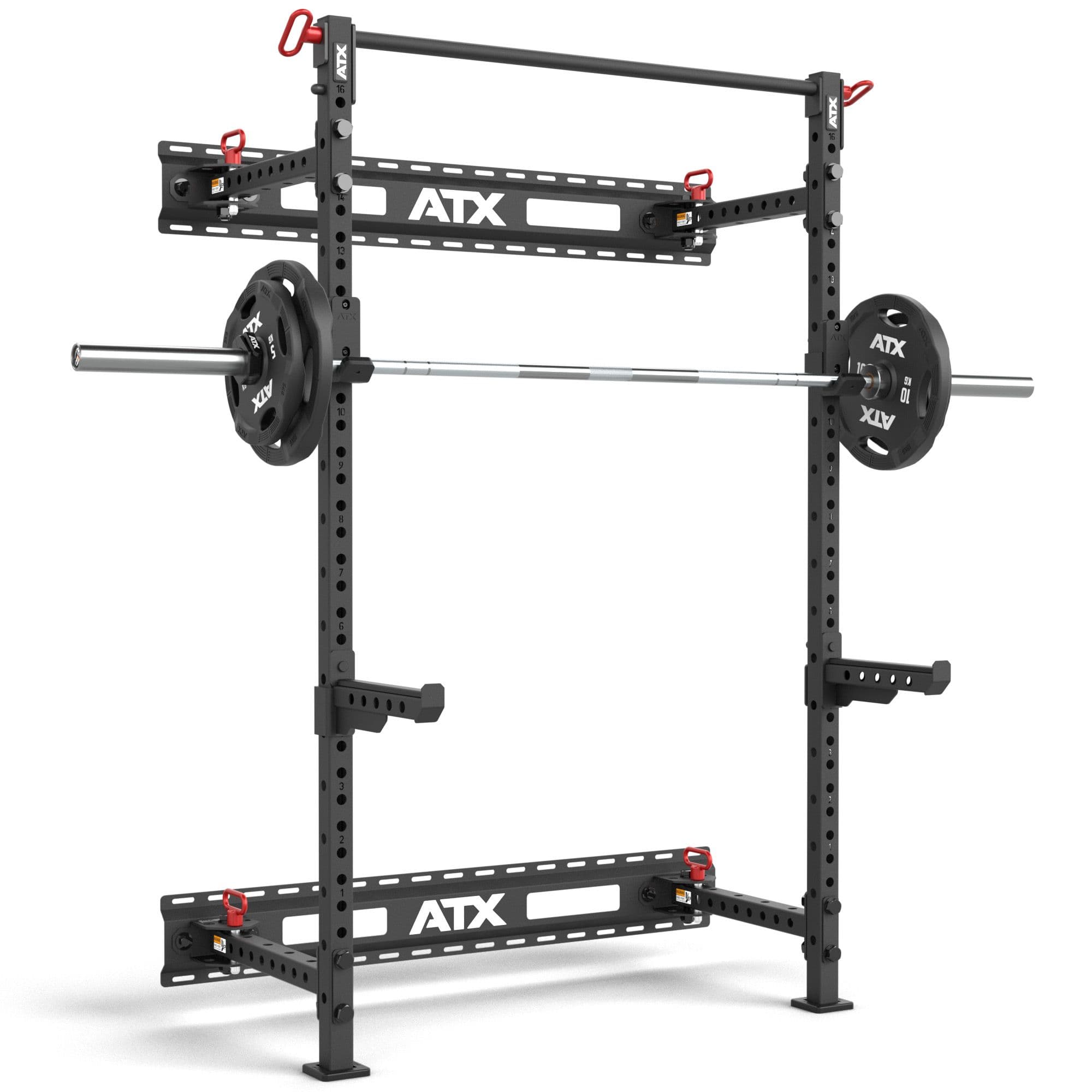

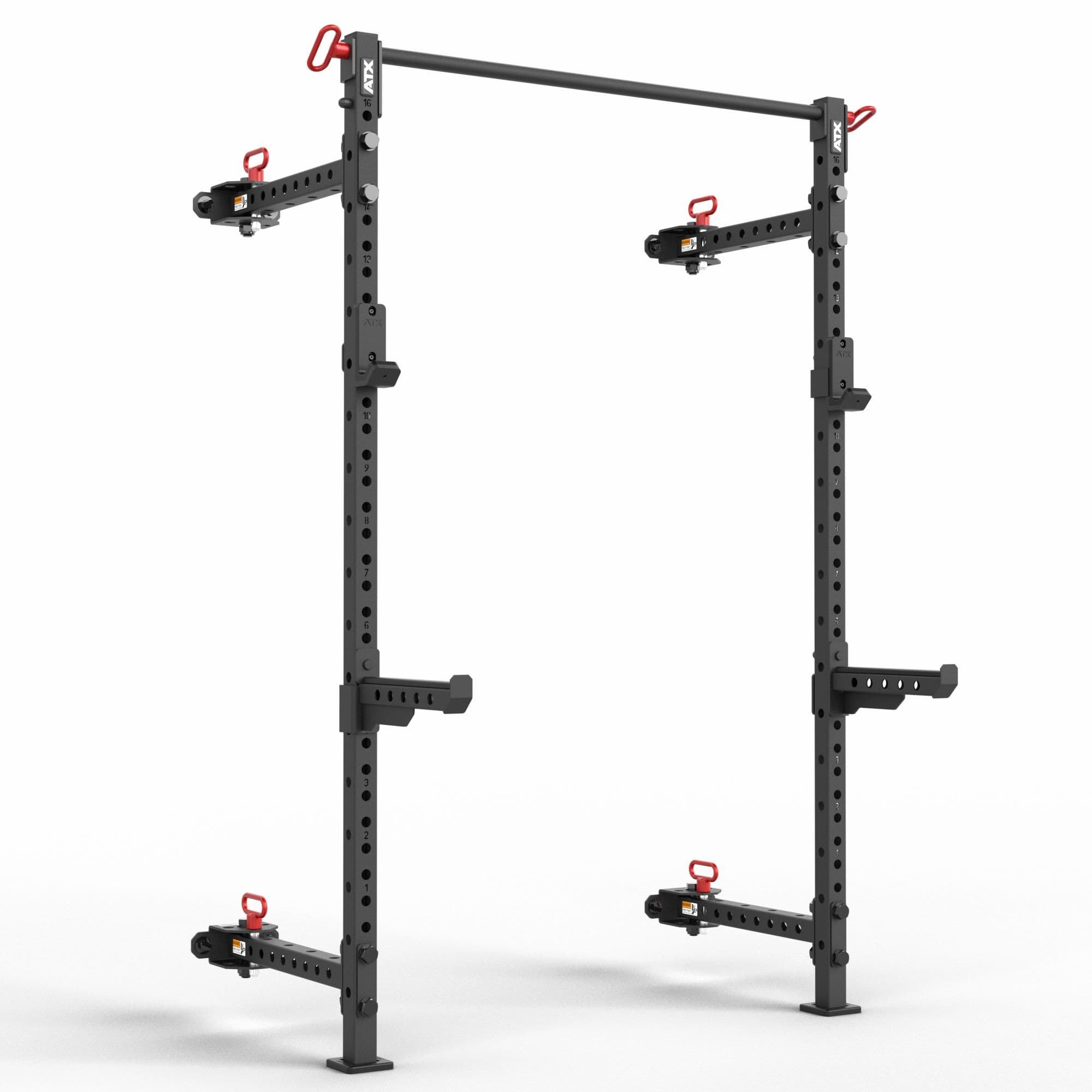

It doesn't get much more compact than this – the FBR-500 Half Rack is not only ideal for flexible, temporary space utilization, but at 198 cm high, it's also perfect for rooms with low ceilings. This rack, from our smallest rack series, is constructed from 50 x 50 x 2 mm square steel tubing. All relevant load-bearing and connection points are made of robust sheet steel, and the connecting and locking bolts have a diameter of 20 mm. The included J-hooks and spotter arms are heavy-duty and feature extra-thick protective coatings. The all-around system perforation with laser-etched scales ensures quick and easy reproduction of the set heights.

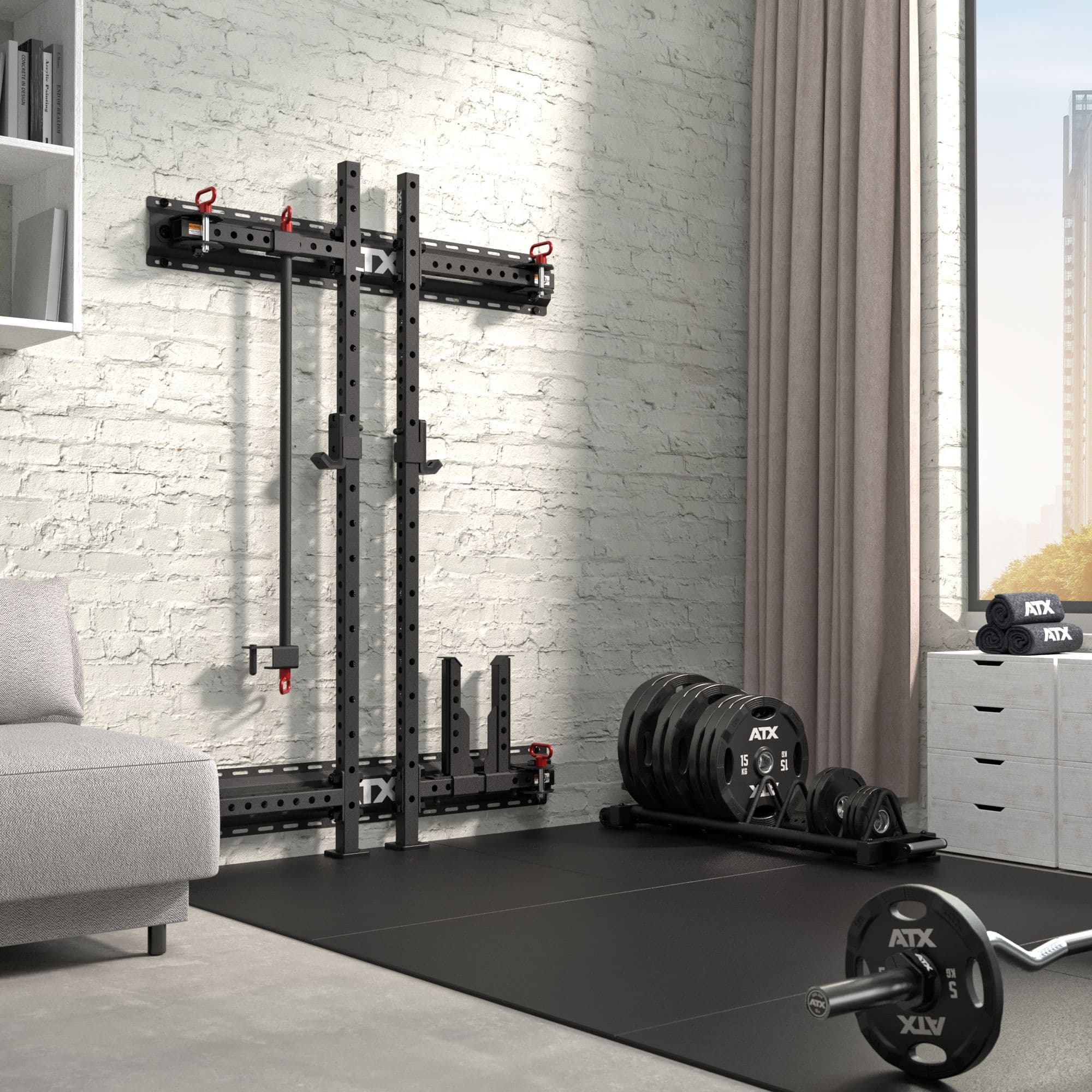

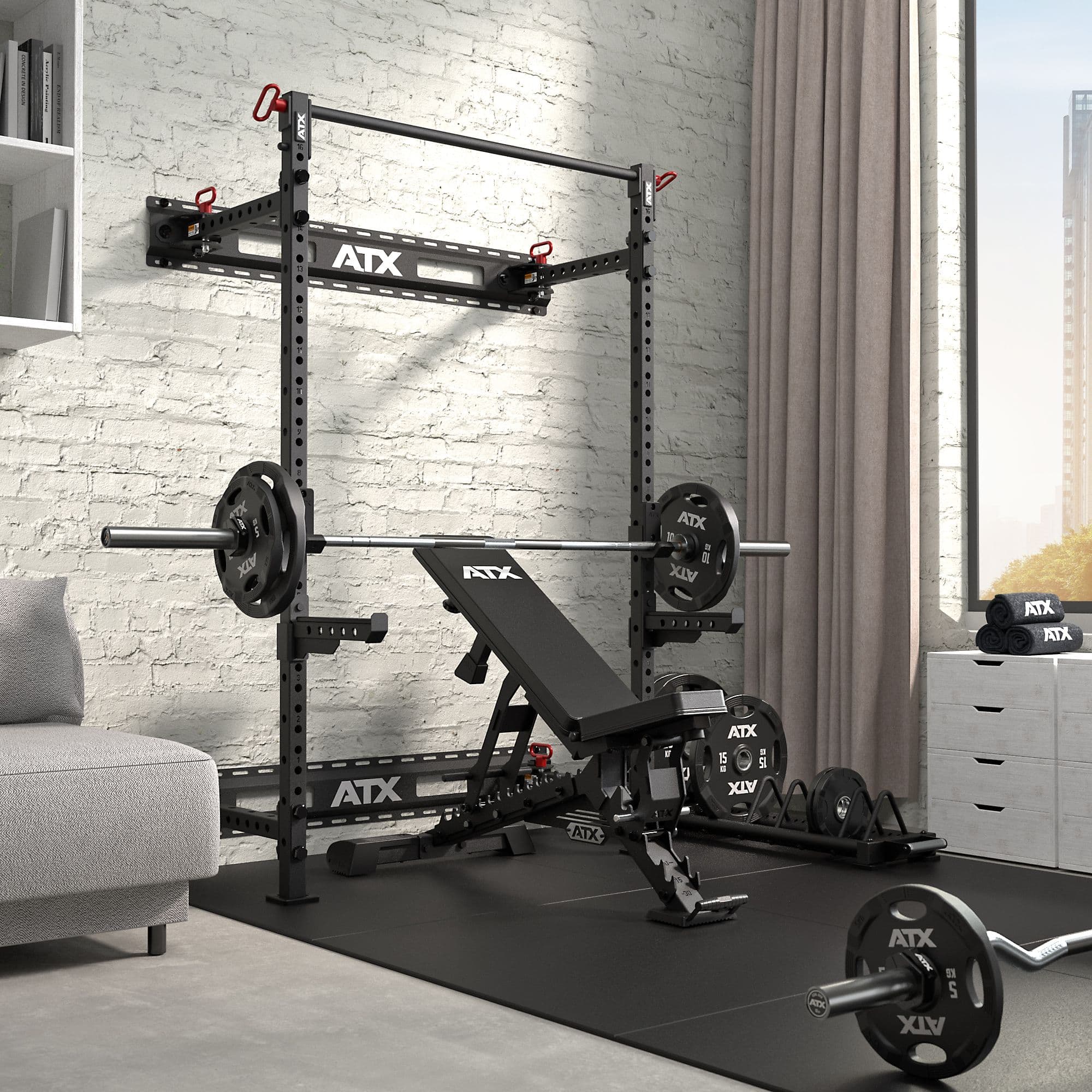

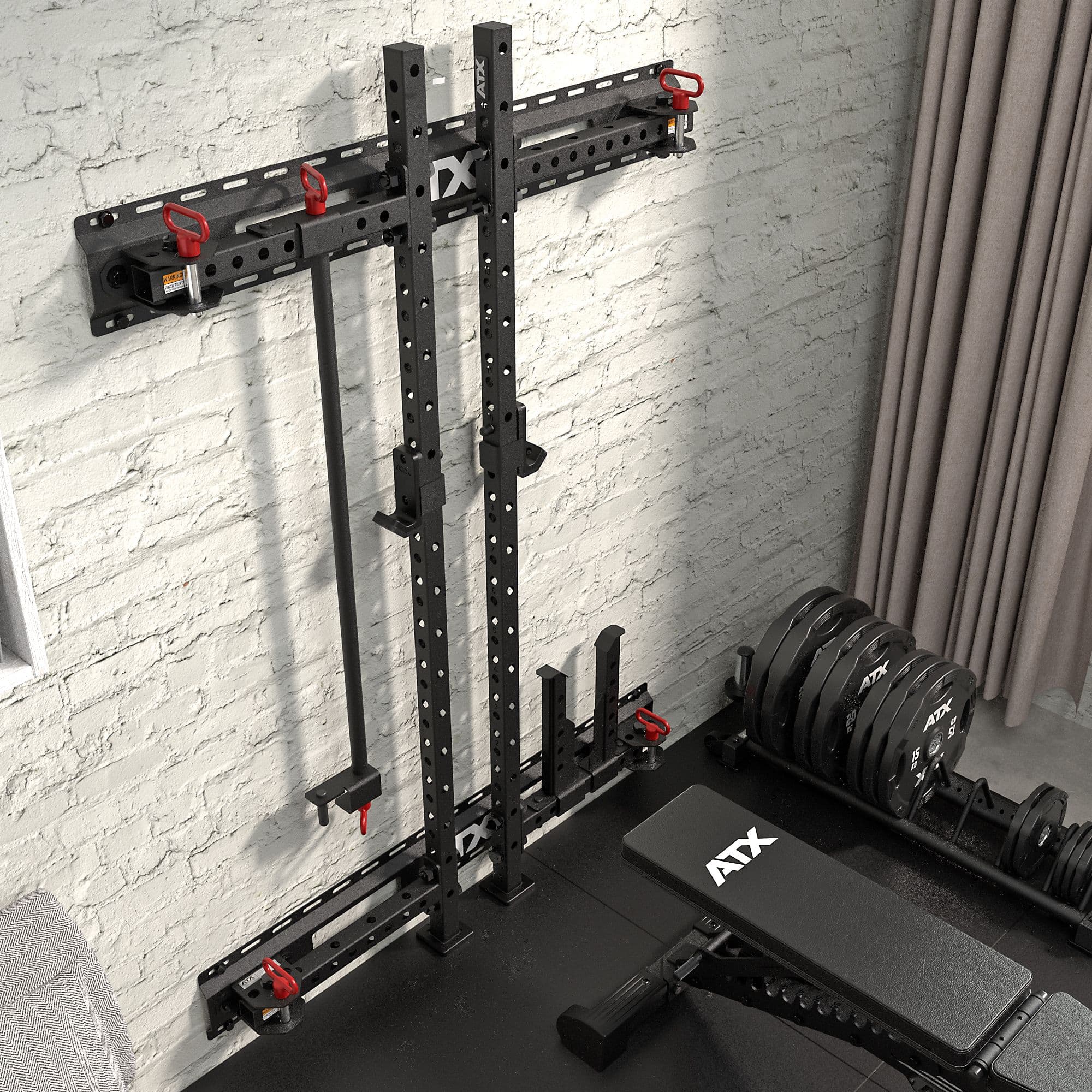

This wall-mounted rack offers flexible space utilization and integrates perfectly into confined spaces. It is easy and intuitive to use. A compact rack that still provides a professional and safe training environment.
Thanks to the modular ATX® system design, this station can be expanded with various other optional accessories.
Key Features
- J-hooks made of 10 mm thick solid steel + extra thick protective coating to protect the barbell and minimize noise. Load capacity up to 400 kg
- Stable safety spotter arms with extra thick protective padding. Load capacity up to 200 kg
- Straight pull-up bar, Ø 32 mm.Load capacity up to 200 kg
- Extra thick screw and locking bolts - Ø 20 mm
- Perforated grid all around for easy insertion of hooks or other accessories
- 26 different height settings
- With laser-etched scale - for quick identification of the height settings
- With rubberized feet - floor-friendly and slip-resistant

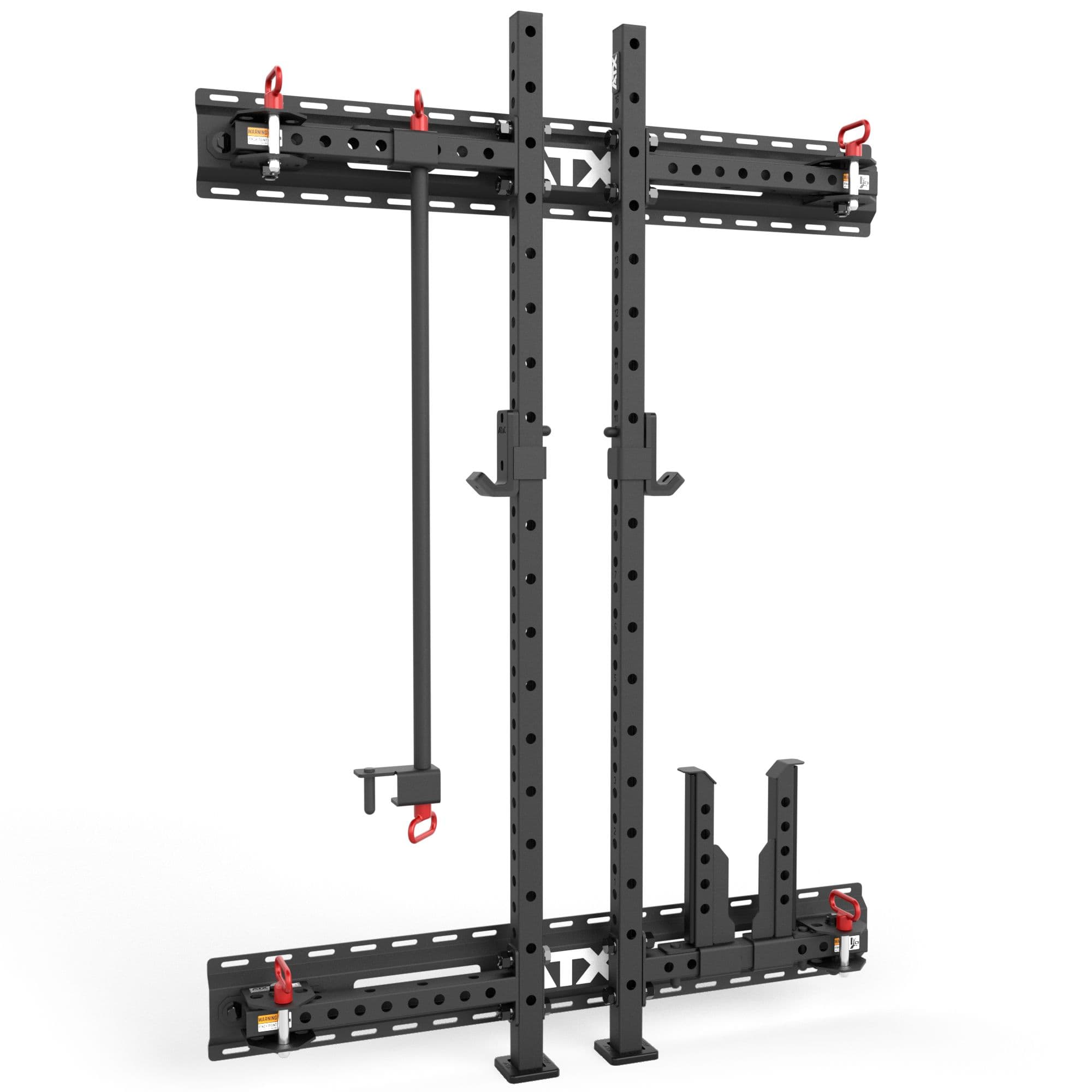

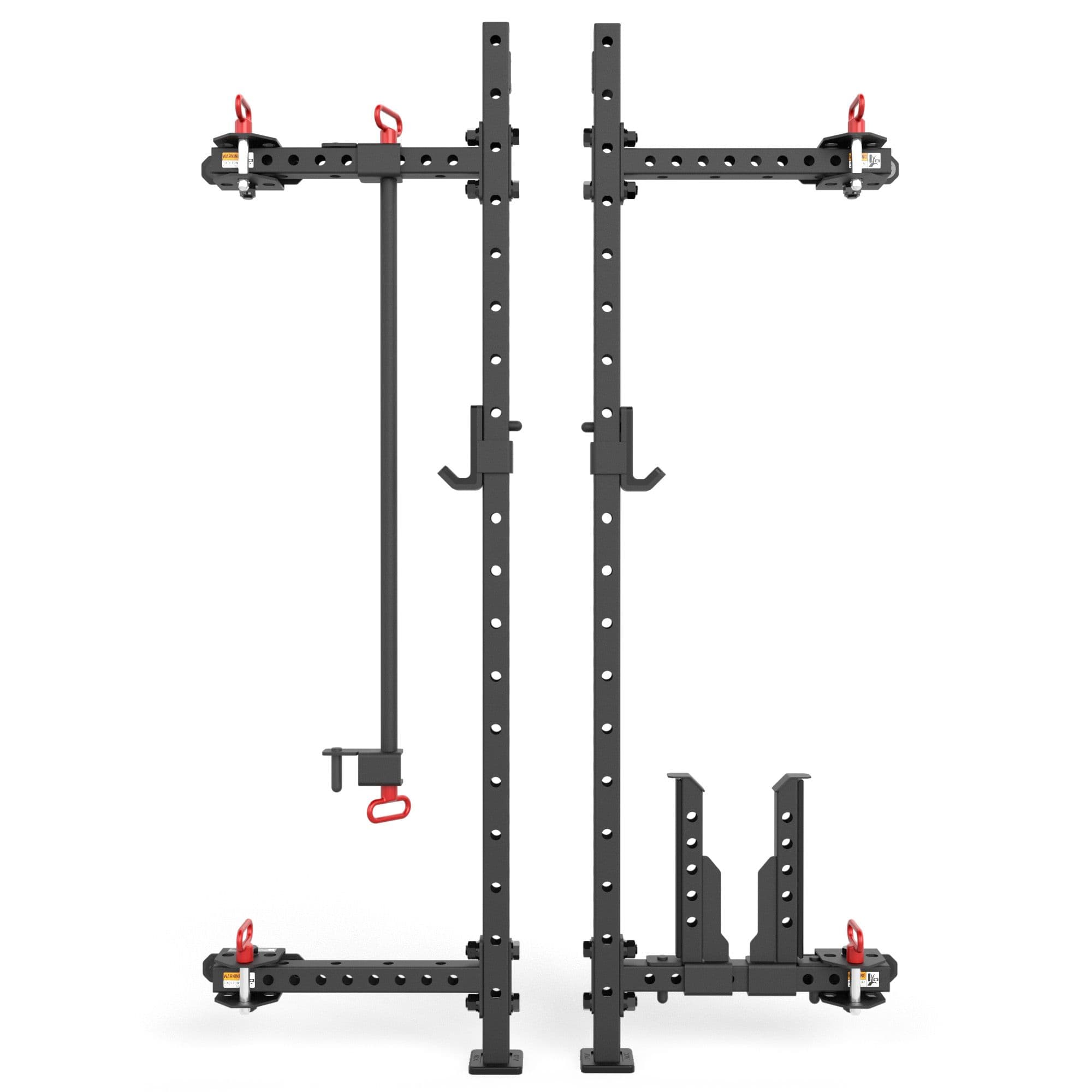

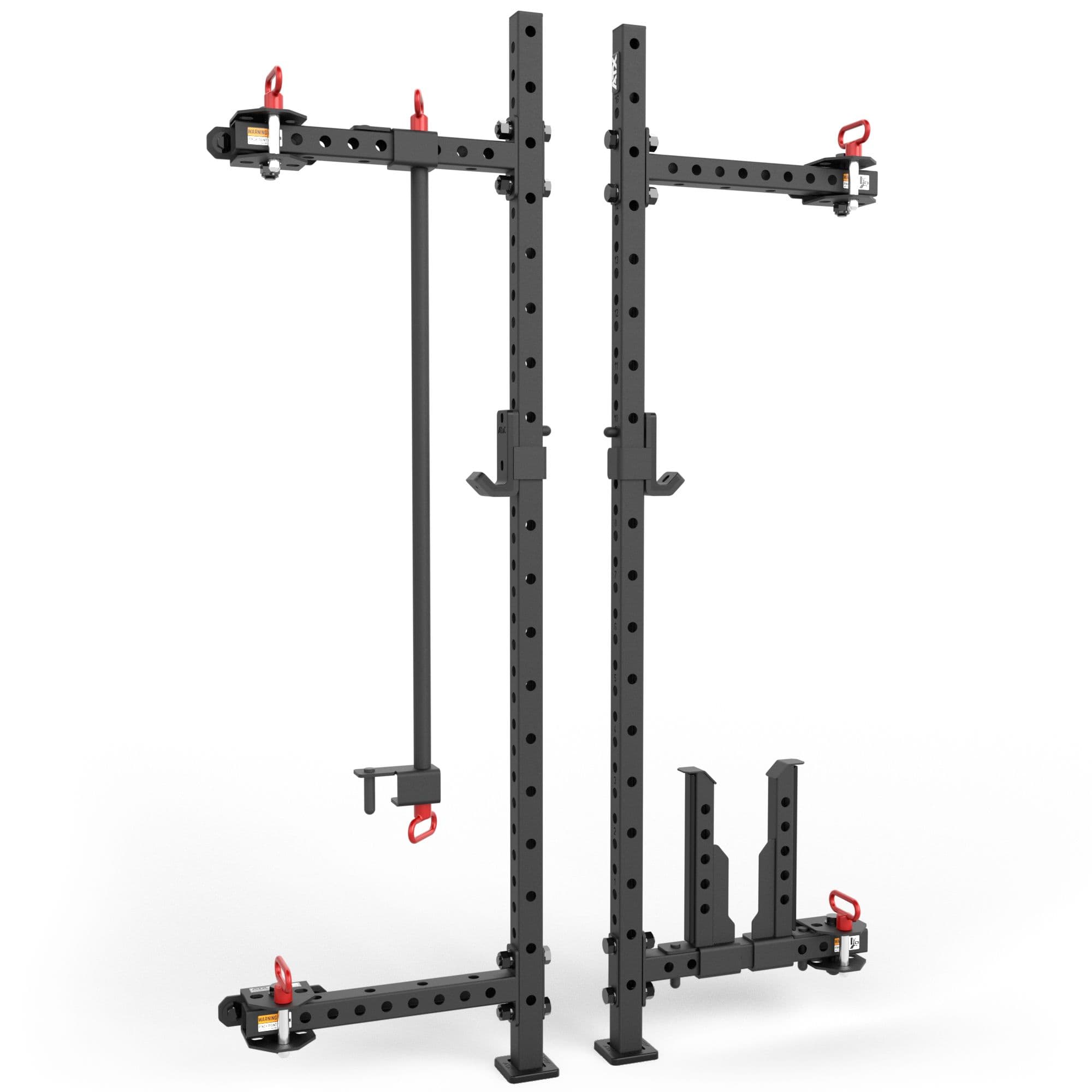

- Extremely space-saving when folded (only about 11 cm deep)
- Quick and easy to fold up/down
- High quality and first-class workmanship
What's Included
- J-Hooks
- Safety spotter arms
- Straight pull-up bar
Specifications
| Series | 500 |
| Width | 138 cm |
| Depth | 61 cm |
| Height | 198 cm |
| Weight | 47 kg - including J-hooks & spotters - without mounting brackets |
| Frame profile | 50 x 50 x 2 mm |
| Barbell rack width | 120 cm |
| Perforated grid | Hole diameter 21 mm, 30 holes, center-to-center spacing 5 cm |
| Scaling | Laser-engraved numerals |
| Color | Black, satin finish, fine texture, powder-coated |
| Certification | EN 20957 I.II.IV - H (Home) |
| Warranty | 3 years |
